Container Image Signing

Container Image Signing

Sign OCI container images using the QCecuring platform.

QCecuring signs the immutable image digest, not the mutable tag.
All private keys remain protected inside QCecuring and are never exposed to the registry.

Signatures are stored as OCI-compatible artifacts alongside the image.

---

Architecture Overview

Container Registry → Resolve Digest → QCecuring Signer → Signing Agent → QCecuring Platform → HSM / KMS

---

Prerequisites

Before signing:

• QCecuring Platform is running
• Signing Agent is installed and running
• A signing key exists in QCecuring
• Docker CLI is installed
• You have push access to the registry

---

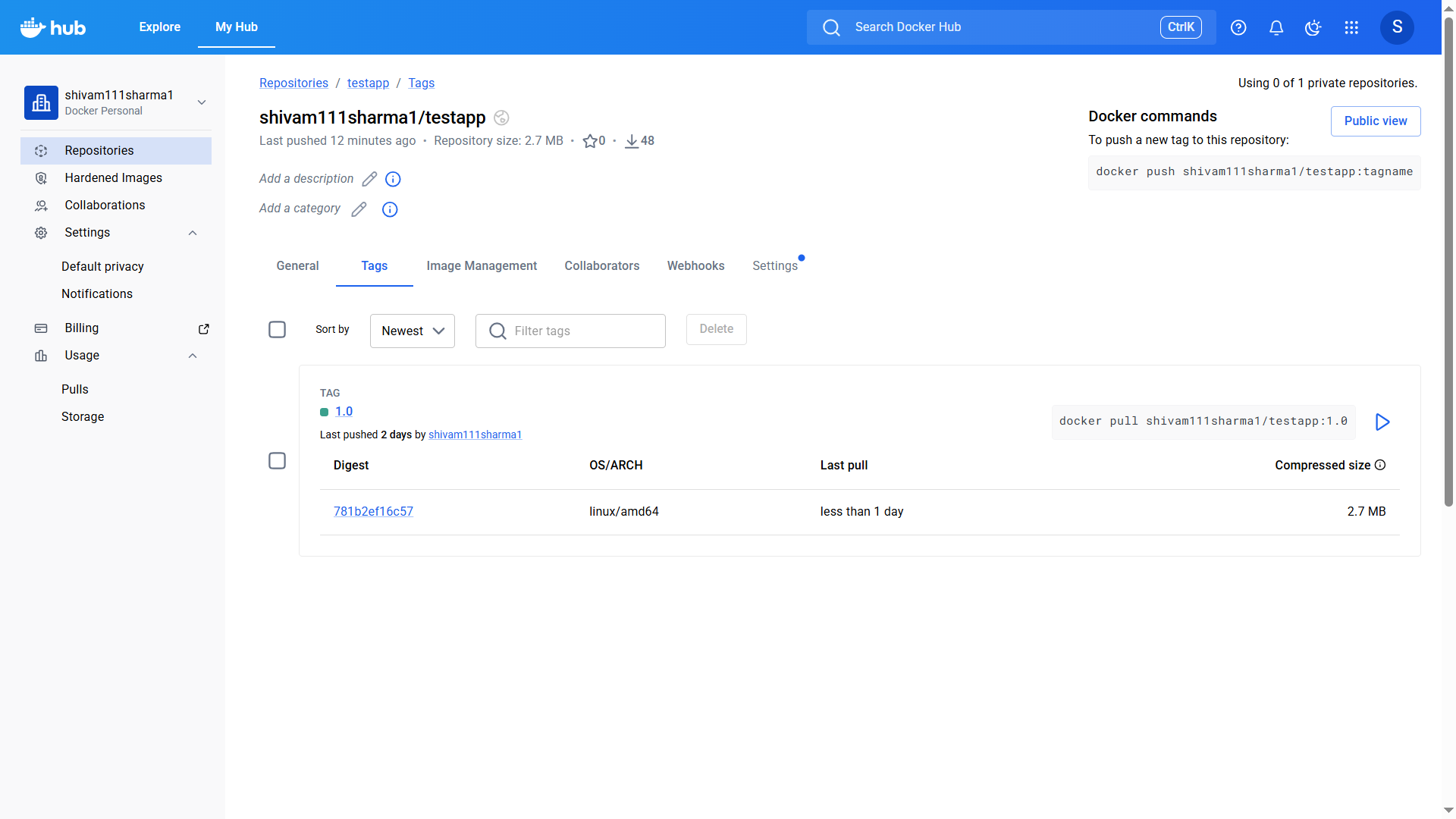

Step 1 — View the image on Docker Registry

---

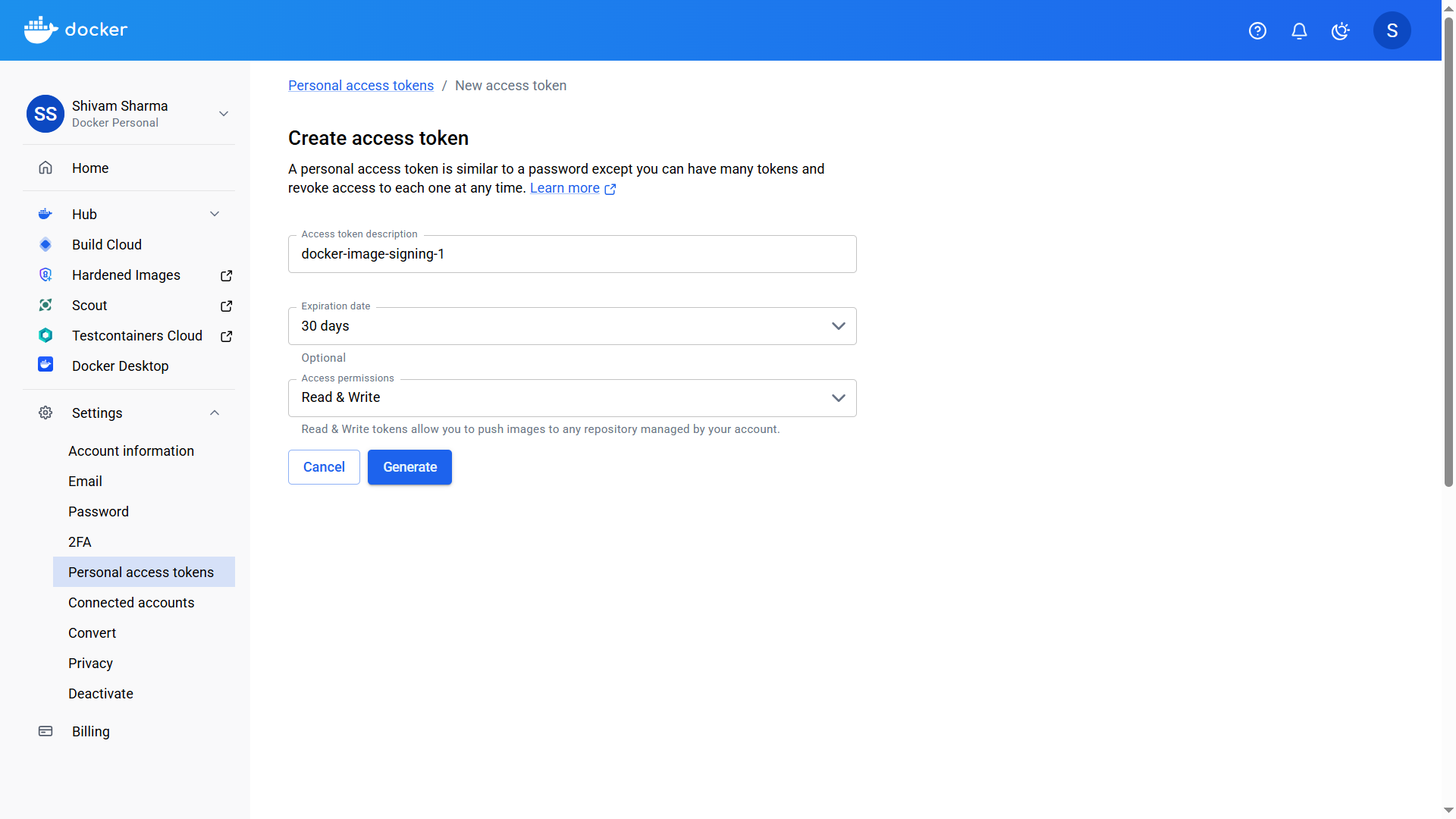

Step 2 — Create Docker Access Token

1. Navigate to Docker Hub → Personal Access Tokens
2. Create a new token with Read & Write permissions

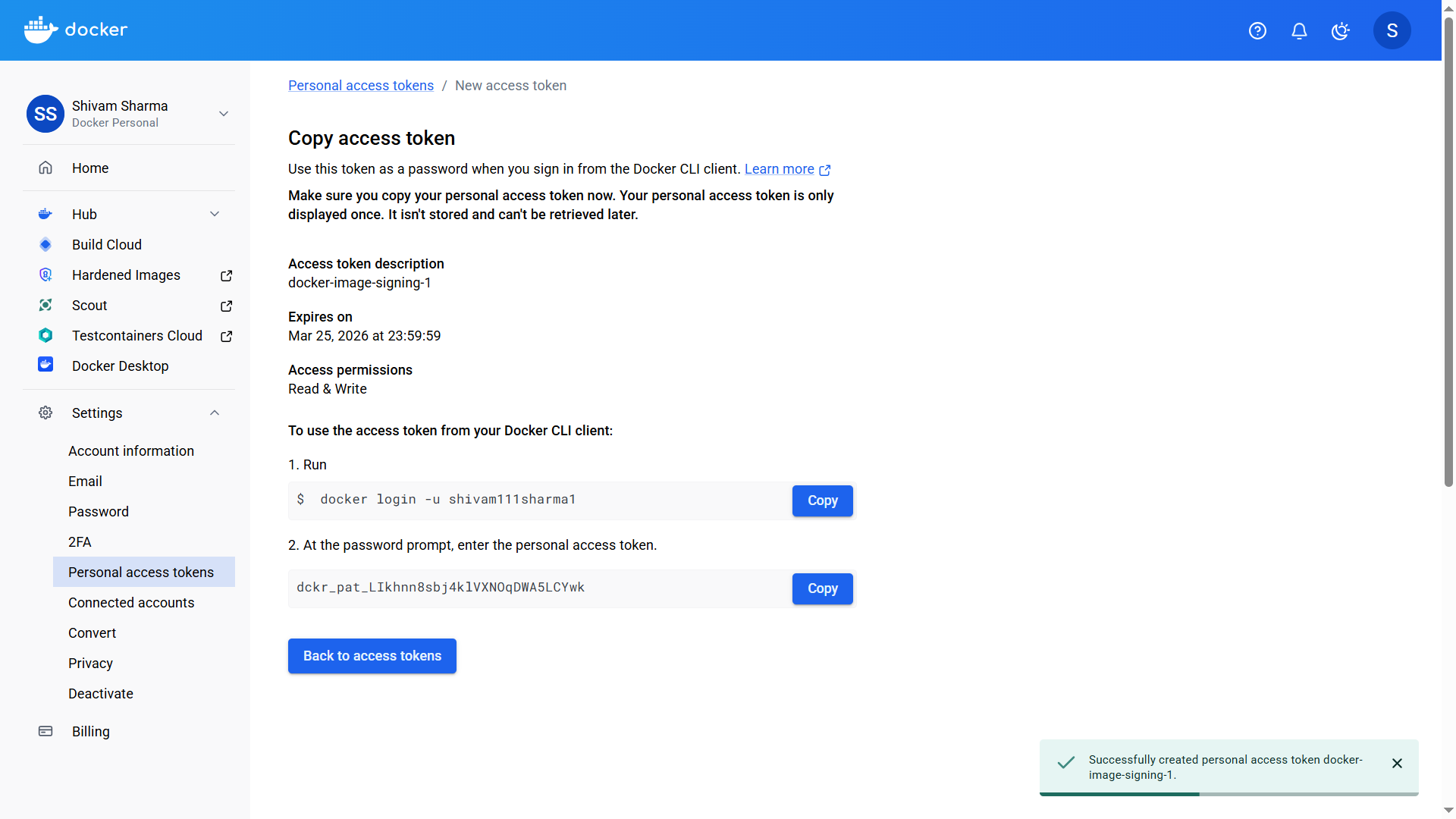

3. Copy the generated token

After generation:

---

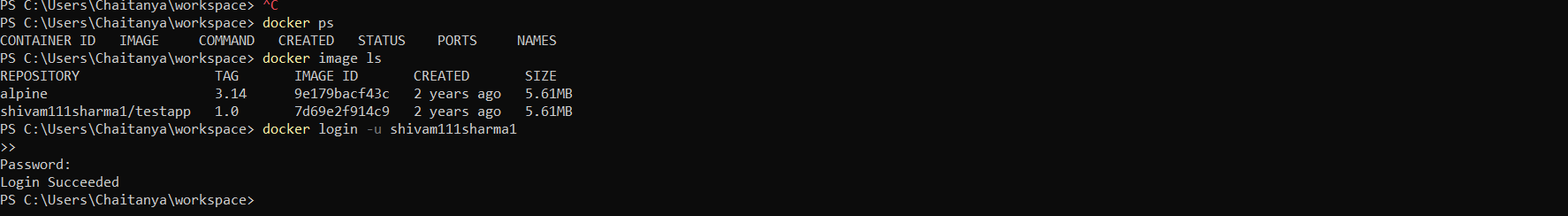

Step 3 — Login to Docker Registry

Login using your Docker username:

docker login -u <your-username>

Paste the Personal Access Token when prompted.

---

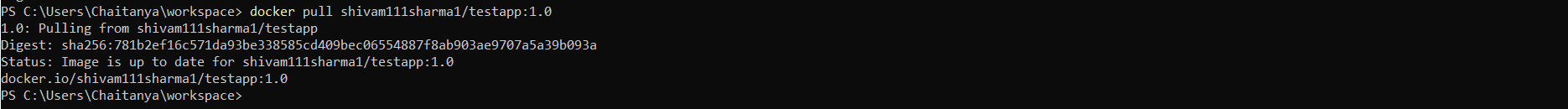

Step 4 — Pull the Image

Ensure the image exists locally:

docker pull shivam111sharma1/testapp:1.0

---

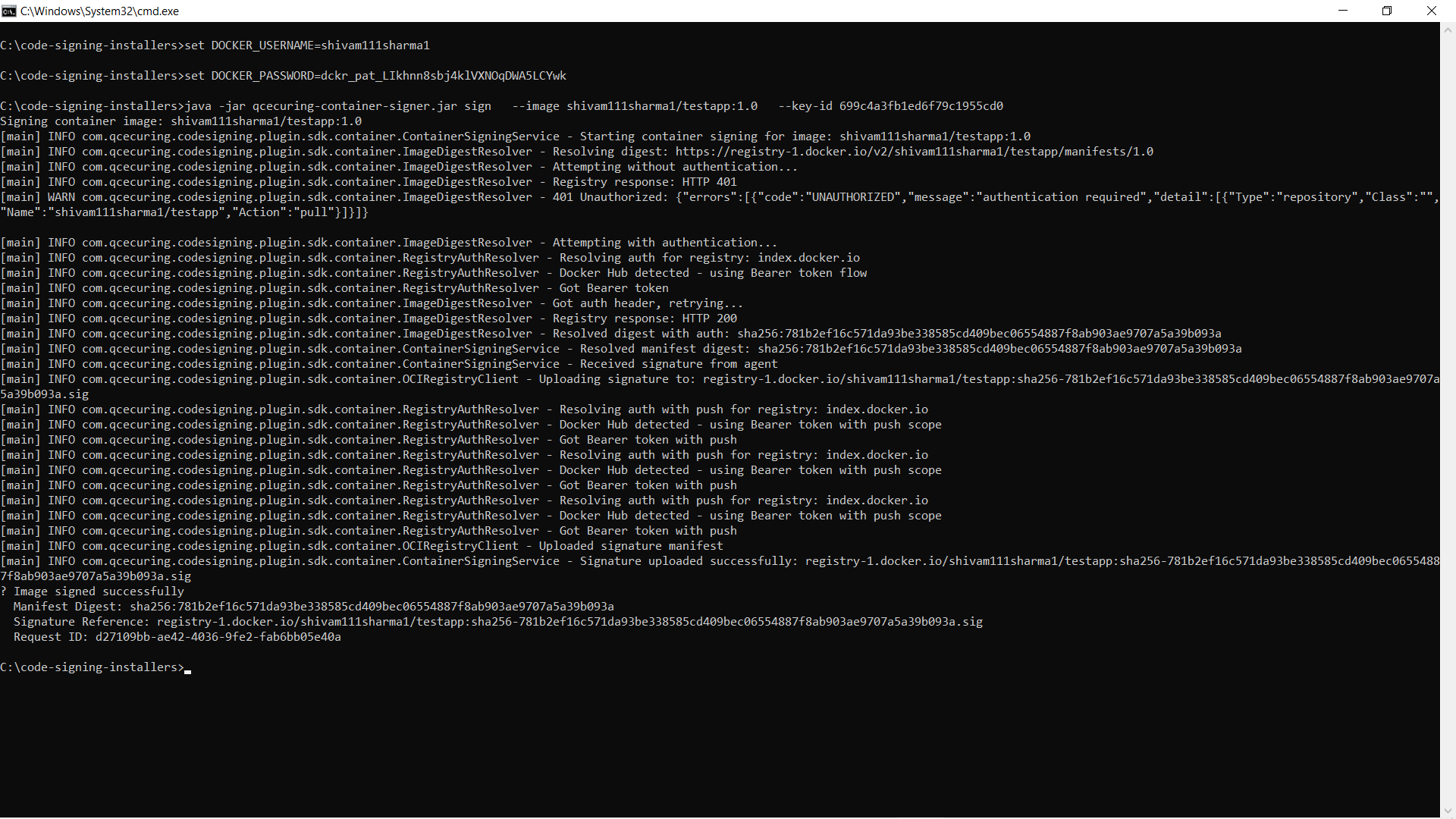

Step 5 — Sign the Image

Run the QCecuring container signer:

java -jar qcecuring-container-signer.jar sign \
  --image shivam111sharma1/testapp:1.0 \
  --key-id <YourKeyId>

The signer will:

1. Resolve the image digest
2. Generate Cosign-compatible payload
3. Sign via QCecuring Agent
4. Upload signature artifact to registry

Expected output:

Image signed successfully

---

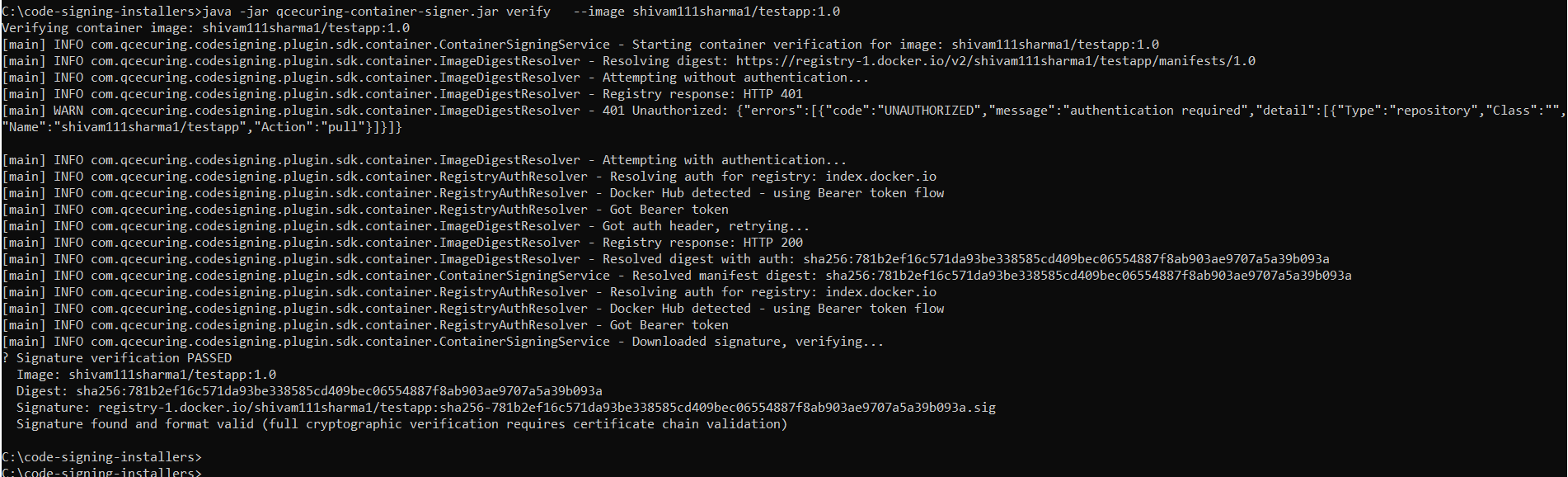

Step 6 — Verify the Signature

java -jar qcecuring-container-signer.jar verify \
  --image shivam111sharma1/testapp:1.0

Expected:

Signature verification PASSED

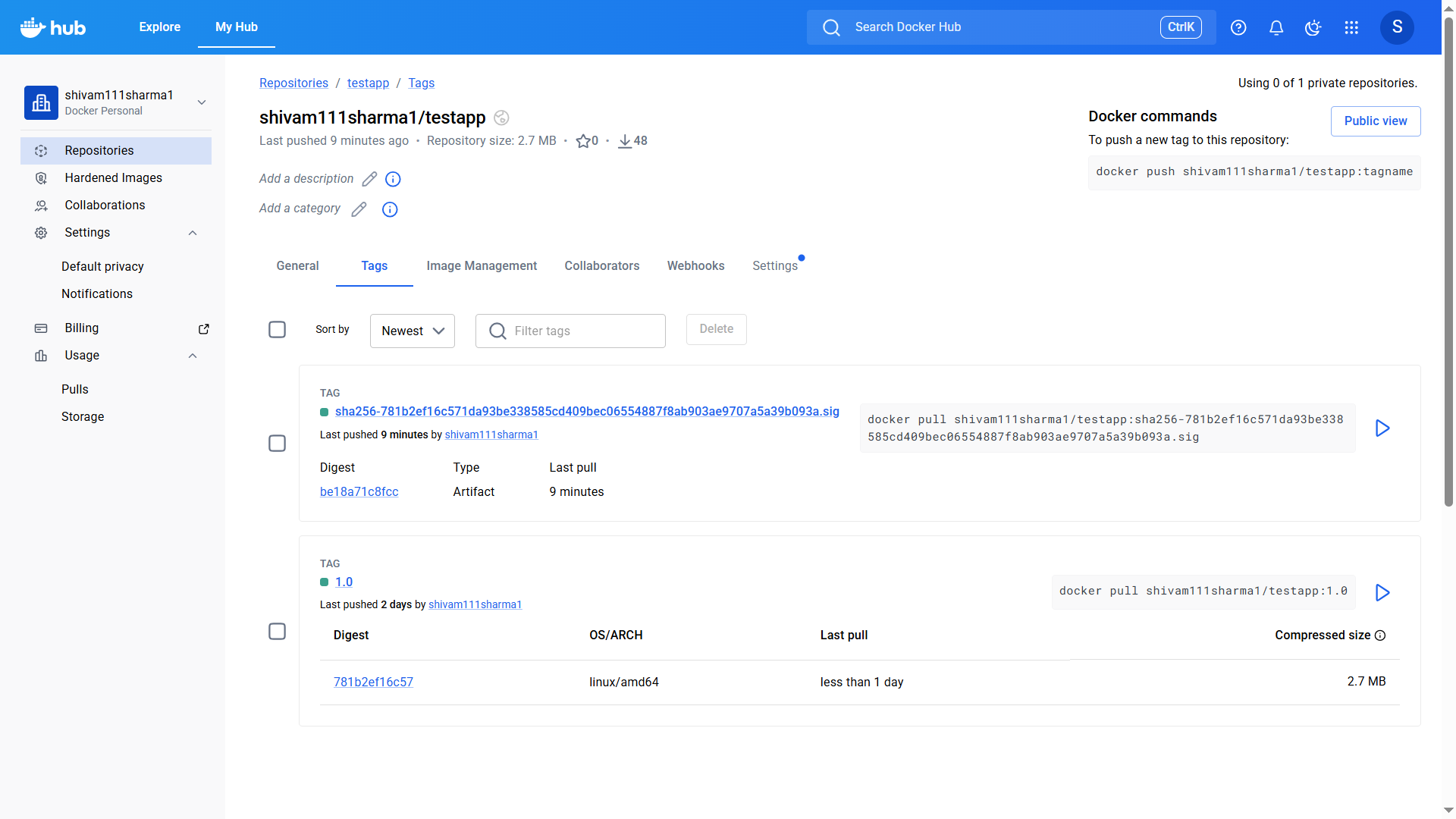

Step 7 — View the Signature on Docker Registry

---

What Gets Signed?

QCecuring signs:

• The image digest (sha256:…)
• The OCI manifest
• Not the mutable tag

This ensures:

• Integrity across registry replication
• Protection against tag retargeting
• Compatibility with OCI registries

---

Authentication Options

The signer automatically reads credentials from:

~/.docker/config.json

Alternatively, you can provide credentials via environment variables:

export DOCKER_USERNAME=myuser
export DOCKER_PASSWORD=mytoken

---

CI/CD Example

GitHub Actions

- name: Sign Container Image
  run: |
    java -jar qcecuring-container-signer.jar sign \
      --image myrepo/app:${{ github.sha }} \
      --key-id ${{ secrets.QCECURING_KEY_ID }}

---

Jenkins Pipeline

stage('Sign Image') {
    steps {
        sh '''
            java -jar qcecuring-container-signer.jar sign \
              --image myrepo/app:${BUILD_NUMBER} \
              --key-id ${QCECURING_KEY_ID}
        '''
    }
}

---

Troubleshooting

Authentication Failed

Run:

docker login

Ensure:

• Token has Read & Write permissions
• Repository exists
• User has push access

---

Signature Not Found

• Confirm registry supports OCI artifacts
• Verify digest matches
• Ensure agent is running

---

Signing Fails

• Check agent logs
• Verify key is ACTIVE
• Confirm policy approval (if enabled)
