Certificate Authorities

Certificate Authorities

The Certificate Authorities page manages all CA integrations used for certificate issuance, renewal, revocation, and inventory synchronization.

Navigation: Sidebar → Infrastructure → Certificate Authorities

---

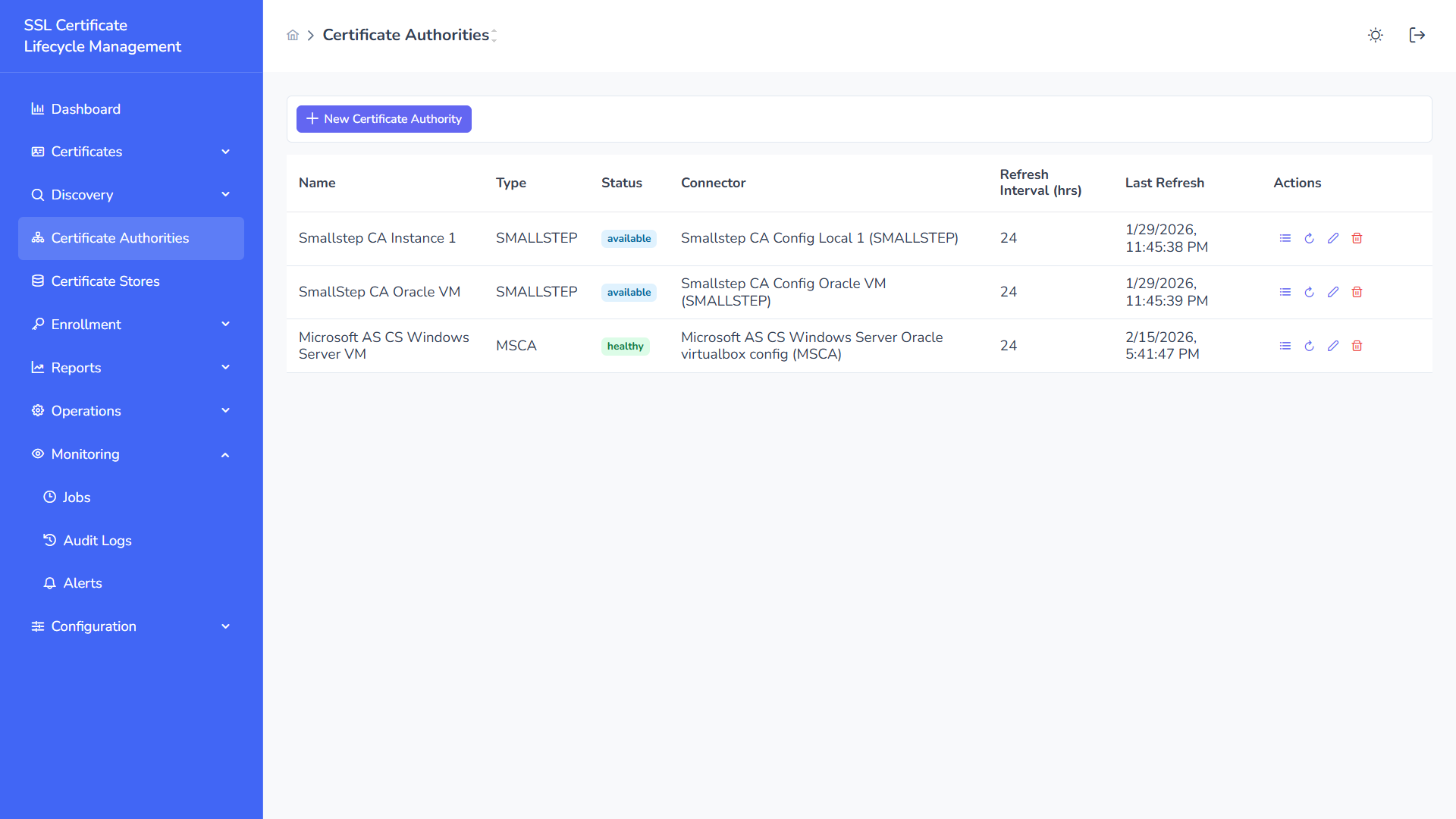

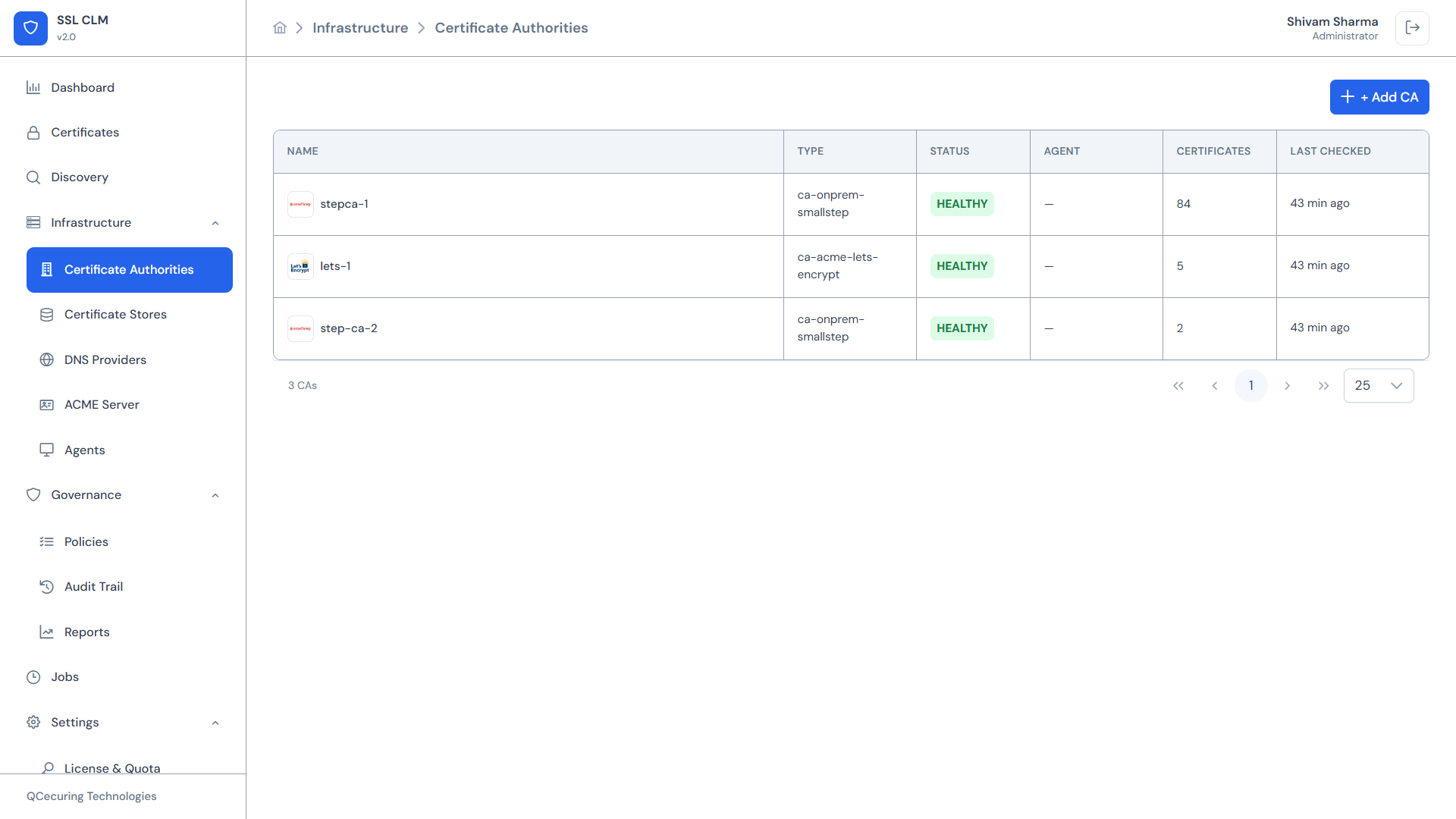

CA Inventory Table

The main view displays all configured CAs with:

Column	Description
Name	Friendly name assigned during creation
Type	Integration type (e.g., MSCA, STEPCA, ACME)
Status	Health status: HEALTHY, UNHEALTHY, UNREACHABLE, DISABLED
Agent	Agent name (for agent-based CAs) or ”—” for direct API
Certificates	Total certificates issued through this CA
Last Checked	Timestamp of the last health check or sync

---

Supported CA Types

SSL-CLM v2 supports 6 Certificate Authority integration types:

Microsoft CA (AD CS)

Property	Value
Type ID	MSCA
Runtime	Agent
Agent Required	Yes — must run on a domain-joined Windows server
Protocol	WinRM / certutil command execution
Features	Enrollment, renewal, revocation, template discovery

The agent executes native certutil and certreq commands against the Microsoft CA. Templates are automatically discovered and made available for certificate issuance.

→ Microsoft AD CS Integration Guide

---

Smallstep Step-CA

Property	Value
Type ID	STEPCA
Runtime	Backend (direct API)
Agent Required	No
Protocol	Step-CA REST API with JWK-signed tokens
Features	Enrollment, renewal, revocation, inventory sync

Authenticates using a JWK provisioner private key. Communicates directly with the Step-CA API over HTTPS.

Configuration Fields:

• provisionerName — JWK provisioner name (e.g., clm@qcecuring.com)
• baseUrl — Step-CA API URL (e.g., https://step-ca.internal:9000)
• provisionerKeyId — KID from the JWK
• provisionerJwk — Full JWK private key (EC P-256)

→ Smallstep CA Integration Guide

---

Let’s Encrypt / ACME

Property	Value
Type ID	ACME
Runtime	Backend
Agent Required	No
Protocol	ACME (RFC 8555)
Features	Enrollment, renewal, revocation via ACME

SSL-CLM acts as an ACME client, automating the full ACME flow (order creation, challenge completion, certificate download).

Configuration Fields:

• directoryUrl — ACME directory URL (e.g., https://acme-v02.api.letsencrypt.org/directory)
• accountEmail — Contact email for the ACME account
• eabKid / eabHmacKey — External Account Binding credentials (if required)

Supported Challenge Types:

• HTTP-01 (requires port 80 access)
• DNS-01 (requires DNS provider integration)
• TLS-ALPN-01 (requires port 443 access)

→ ACME / Let’s Encrypt Integration Guide

---

EJBCA

Property	Value
Type ID	EJBCA
Runtime	Backend
Agent Required	No
Protocol	EJBCA REST API
Features	Enrollment, renewal, revocation, template/profile discovery

Integrates with EJBCA (Enterprise Java Beans Certificate Authority) via its REST API for enterprise PKI environments.

Configuration Fields:

• baseUrl — EJBCA API endpoint
• clientCertPath — Client certificate for mutual TLS authentication
• clientKeyPath — Client private key
• caName — Target CA name within EJBCA
• certificateProfileName — Certificate profile to use
• endEntityProfileName — End entity profile to use

→ EJBCA Integration Guide

---

AWS Private CA (ACM PCA)

Property	Value
Type ID	ACMPCA
Runtime	Backend
Agent Required	No
Protocol	AWS SDK (ACM PCA API)
Features	Enrollment, renewal, revocation

Integrates with AWS Certificate Manager Private Certificate Authority for cloud-native PKI.

Configuration Fields:

• region — AWS region (e.g., us-east-1)
• caArn — ARN of the Private CA
• accessKeyId — AWS access key
• secretAccessKey — AWS secret key
• signingAlgorithm — e.g., SHA256WITHRSA
• templateArn — (optional) ACM PCA template ARN

→ AWS Private CA Integration Guide

---

Google Certificate Authority Service

Property	Value
Type ID	GOOGLE_CAS
Runtime	Backend
Agent Required	No
Protocol	Google Cloud API (CAS v1)
Features	Enrollment, renewal, revocation

Integrates with Google Cloud Certificate Authority Service for GCP-native PKI.

Configuration Fields:

• projectId — GCP project ID
• location — Region (e.g., us-central1)
• caPoolId — CA Pool identifier
• caId — (optional) Specific CA within the pool
• serviceAccountJson — GCP service account credentials (JSON)

→ Google CAS Integration Guide

---

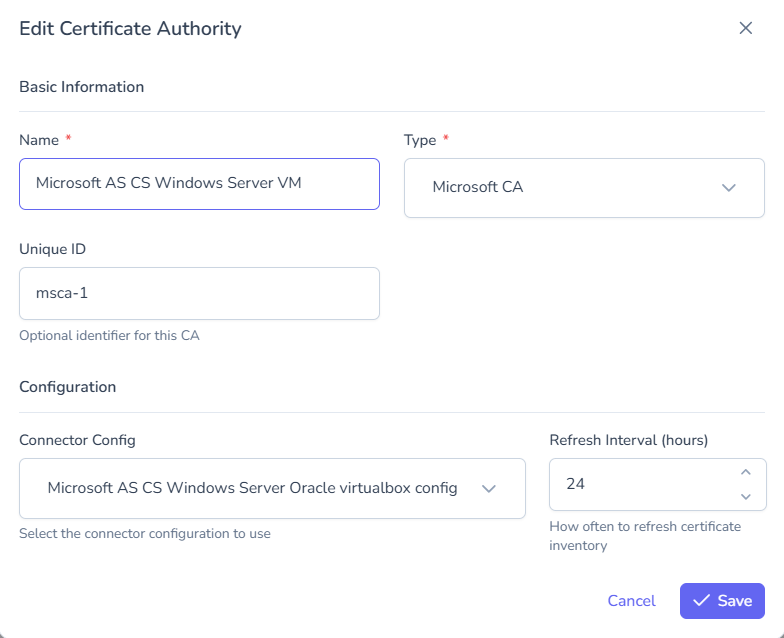

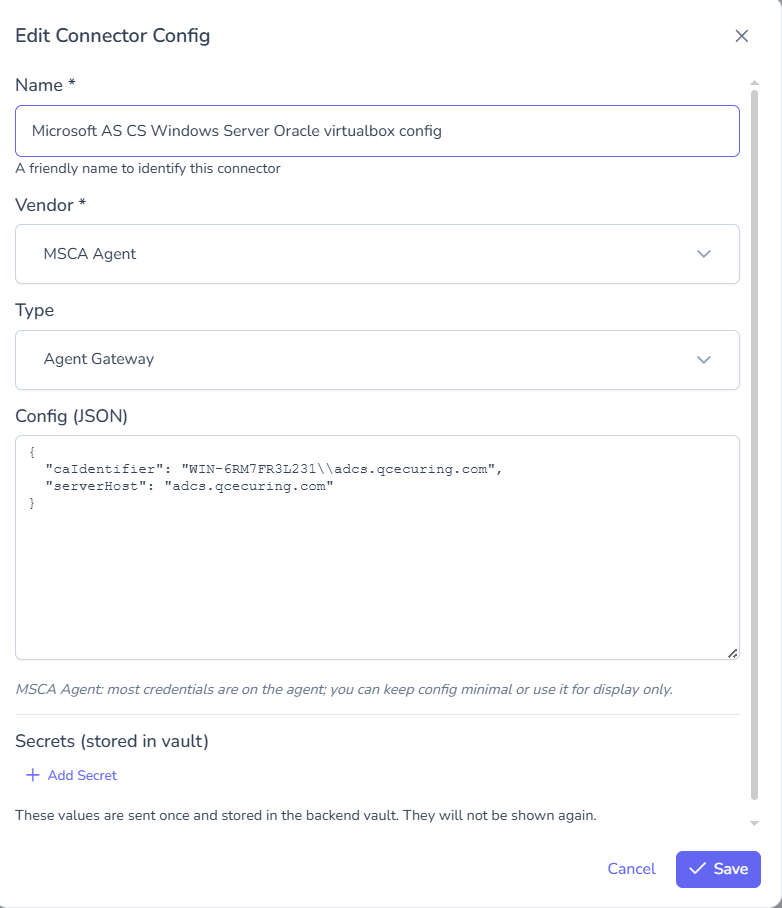

Adding a Certificate Authority

1. Click + Add CA
2. Step 1 — Select Type: Choose from the 6 supported CA types displayed as cards
3. Step 2 — Configure: Fill in the configuration fields (rendered dynamically based on the selected type’s schema)
   • Enter a friendly name
   • For agent-based CAs: select the agent from the dropdown
   • For API-based CAs: enter endpoint URL and credentials
   • Set discovery/refresh interval (hours) for automatic CA inventory sync
4. Step 3 — Test Connection (optional): Verify connectivity before saving
5. Click Save

The wizard uses dynamic config schemas loaded from /api/integration-schemas/ca/{type}, so configuration fields adapt to each CA type automatically.

---

CA Detail View

Click any CA row to open its detail page:

Overview

• CA name, type, status, integration ID
• Agent assignment (if applicable)
• Discovery interval configuration
• Last sync timestamp
• Certificate count

Health Check

• Current status with color indicator
• Last check timestamp
• Health check history
• Error details (for UNHEALTHY/UNREACHABLE)

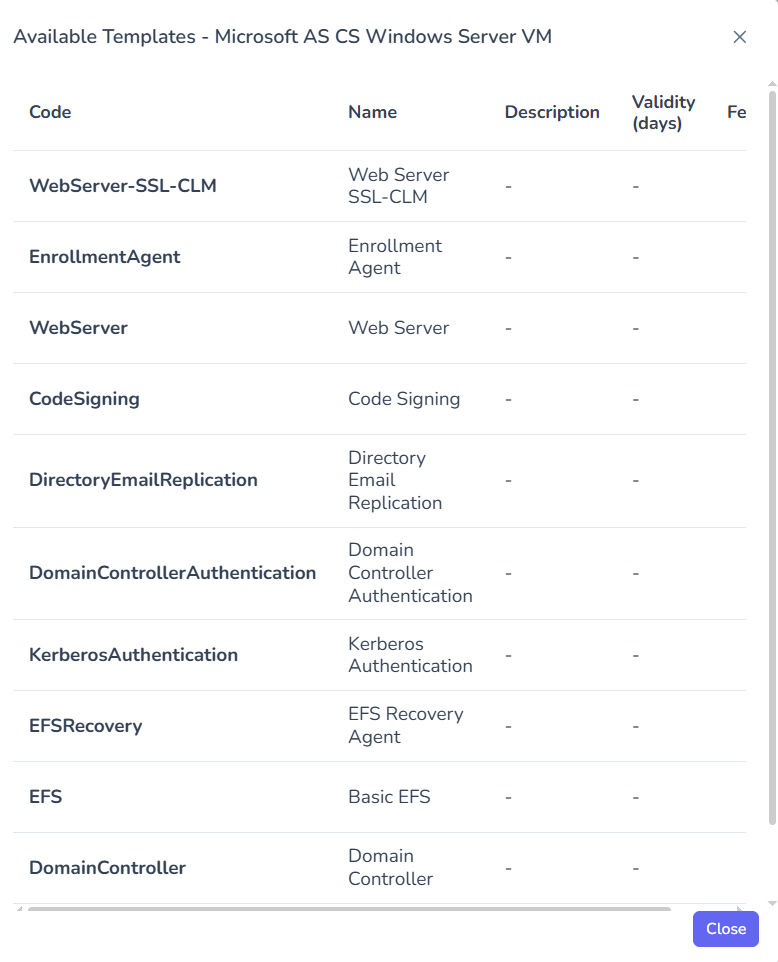

Templates

For CAs that support templates (Microsoft CA, EJBCA):

• Auto-discovered template list
• Template metadata: code, name, validity, key algorithms, min key size, SAN support, wildcard support, approval requirement, EKUs
• Load Templates button to trigger fresh template discovery

Certificates

List of all certificates issued by this CA, with links to certificate detail views.

Actions

• Test Connection — Verify CA reachability
• Refresh — Trigger immediate inventory sync (CA_REFRESH job)
• Load Templates — Discover available certificate templates
• Edit — Modify configuration
• Disable — Deactivate the CA (prevents new issuance)
• Delete — Remove the CA integration

---

CA Health Statuses

Status	Meaning	Action Required
HEALTHY	CA reachable, credentials valid, API responding	None
UNHEALTHY	CA reachable but returning errors	Check credentials, CA service health
UNREACHABLE	Network timeout or connection refused	Check network, firewall, agent status
DISABLED	Manually disabled by administrator	Re-enable when ready

---

Template Discovery

For template-based CAs, SSL-CLM automatically discovers available certificate templates:

Microsoft CA Templates

Discovered via certutil -catemplates through the agent:

• Template display name and OID
• Key algorithm requirements
• Validity period
• Whether manual approval is required

EJBCA Profiles

Discovered via the EJBCA REST API:

• Certificate profiles
• End entity profiles
• Key constraints

Templates appear in the enrollment workflow when a user selects the CA.

---

CA Inventory Synchronization

SSL-CLM periodically syncs with each CA based on the configured Refresh Interval:

1. Platform dispatches a CA_REFRESH job
2. Agent (or backend) queries the CA for all issued certificates
3. Results are compared against platform inventory
4. New certificates are flagged
5. Revoked or expired certificates are updated

Default refresh interval: 24 hours. Can be set from 1 hour to 168 hours (7 days).

---
