SSH-KLM Agent

SSH-KLM Discovery Agent

The QCecuring SSH-KLM Agent enables secure, distributed SSH key discovery across your infrastructure.

It runs locally on servers and endpoints to:

Scan filesystem locations for SSH keys
Extract key metadata (fingerprint, type, owner, path)
Submit findings securely to the SSH-KLM platform
Maintain periodic heartbeat with the backend

The agent does not transmit private key material.

Only SSH key metadata (fingerprint, location, attributes) is sent to the platform.

Supported Platforms

Windows Server 2016+
Linux (Ubuntu, RHEL, Debian, SUSE)
macOS (limited support)

Prerequisites

Java 21 or later
Network access to SSH-KLM backend
Bootstrap token (for first registration)

Optional (Production):

mTLS client certificate
HTTPS-enabled backend

Installation

Download the agent from:

Agent Management → Download Agent

Or obtain the JAR file:

ssh-klm-agent-0.0.1-SNAPSHOT.jar

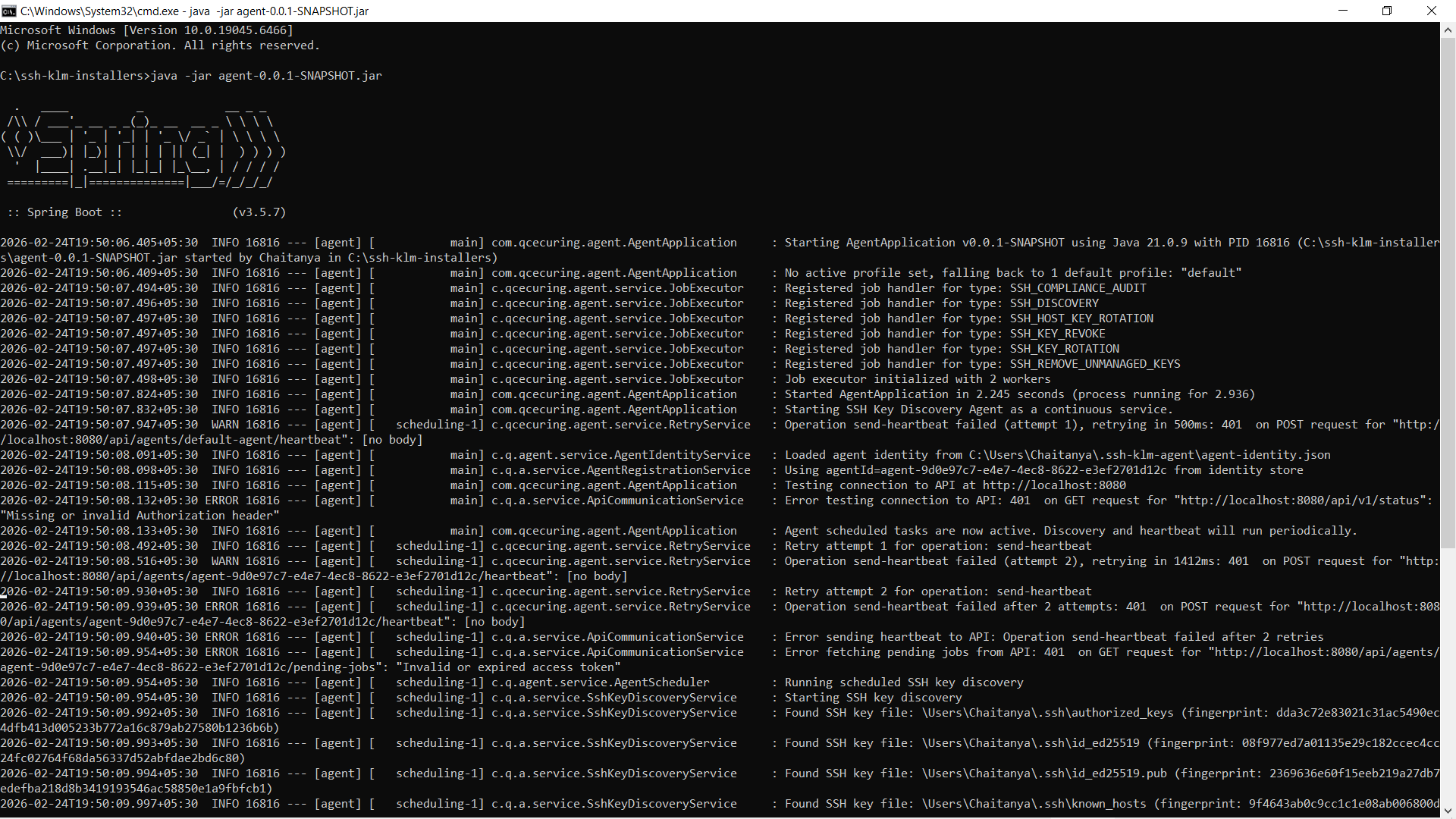

Running the Agent

java -jar ssh-klm-agent.jar

When started successfully, the agent:

Registers using bootstrap token
Receives a unique agentId
Begins periodic heartbeat
Starts scheduled SSH key discovery

SSH KLM Agent

First-Time Registration (Bootstrap)

The agent requires a bootstrap token for initial registration.

Example:

java -jar ssh-klm-agent.jar \
  --backend.url=http://localhost:8080 \
  --bootstrap.token=YOUR_BOOTSTRAP_TOKEN

Registration flow:

Agent sends bootstrap token to backend
Backend validates token
Backend issues agent identity + access token
Agent stores credentials locally
Future communication uses issued access token

Configuration

The agent can be configured via:

agent.properties
Environment variables
Command-line arguments

Example Configuration (agent.properties)

backend.url=http://localhost:8080

# Discovery configuration
discovery.interval.minutes=5
discovery.scan-user-homes=true
discovery.scan-system-ssh=true

# Authentication
bootstrap.token=CHANGE_ME

# Optional mTLS (recommended in production)
backend.mtls.enabled=false
backend.mtls.client-cert-path=
backend.mtls.client-cert-password=
backend.mtls.ca-cert-path=

logging.level=INFO

Environment Variables

export BACKEND_URL=http://localhost:8080
export BOOTSTRAP_TOKEN=your_bootstrap_token
export DISCOVERY_INTERVAL_MINUTES=5

In production environments, use secure secret management for tokens and certificates.

Running as a Service

Windows

Install as a Windows service using NSSM or similar.

Manage using:

Start-Service QCecuring-SSH-KLM-Agent
Stop-Service QCecuring-SSH-KLM-Agent
Get-Service QCecuring-SSH-KLM-Agent

Linux (systemd)

Create a systemd unit file and manage using:

sudo systemctl start ssh-klm-agent
sudo systemctl status ssh-klm-agent
sudo systemctl enable ssh-klm-agent

Discovery Model

What the Agent Scans

~/.ssh/
/etc/ssh/
authorized_keys
known_hosts
Host key files

What is Collected

SHA-256 fingerprint
Key type (RSA, ED25519, ECDSA, DSA)
Bit length
File path
File permissions
Owner
Host metadata

What is NOT Collected

Private key material
SSH passphrases
Command history
User passwords

Communication Model

The agent communicates with the backend via:

HTTPS (default)
Optional mTLS (recommended in production)
JWT-based authentication after registration

Heartbeat interval: configurable (default 1 minute) Discovery interval: configurable (default 5 minutes)

Verification

To verify the agent is running:

Ensure the process is active
Confirm the Registered Agents page shows status ACTIVE
Check discovery logs in the dashboard
Confirm heartbeat updates

Security Best Practices

Rotate bootstrap tokens after initial deployment
Enable HTTPS on backend
Enable mTLS in production
Restrict outbound network access
Run agent with least privilege required for SSH directory access

Next Steps

Register agents on additional hosts
Enable scheduled reports
Configure alert notifications
Monitor discovery logs
