Platform Installation

The QCecuring Code Signing Platform is delivered as a unified Spring Boot application containing:

REST API
Web UI
Signing Engine
Policy Engine
Audit Layer

It runs as a single executable JAR.

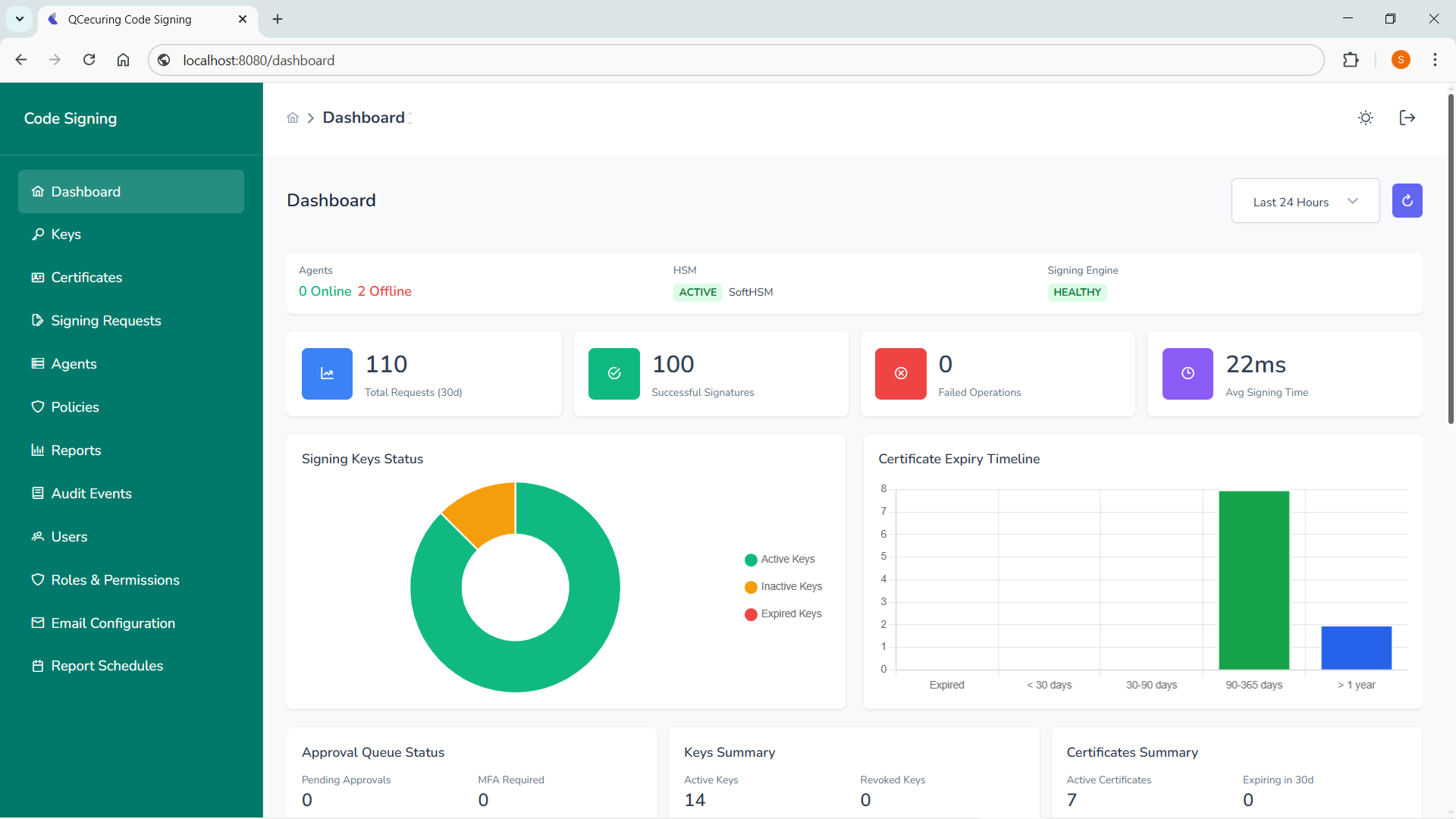

Code Signing dashboard

Prerequisites

Required

Java 21+
MongoDB

Optional (Production)

HSM or Cloud KMS
TLS certificates
Reverse proxy (NGINX / Load Balancer)

Step 1 — Verify Java

java -version

Expected: Java 21 or higher.

Step 2 — Start Dependencies

Start MongoDB

docker run -d \
  --name mongo \
  -p 27017:27017 \
  mongo:7

Step 3 — Run the Platform

Navigate to your JAR location:

cd installers

Start the application:

java -jar code-signing-0.0.1-SNAPSHOT.jar

You should see:

:: Spring Boot ::  (v3.x.x)
No active profile set, falling back to default profile: "dev"

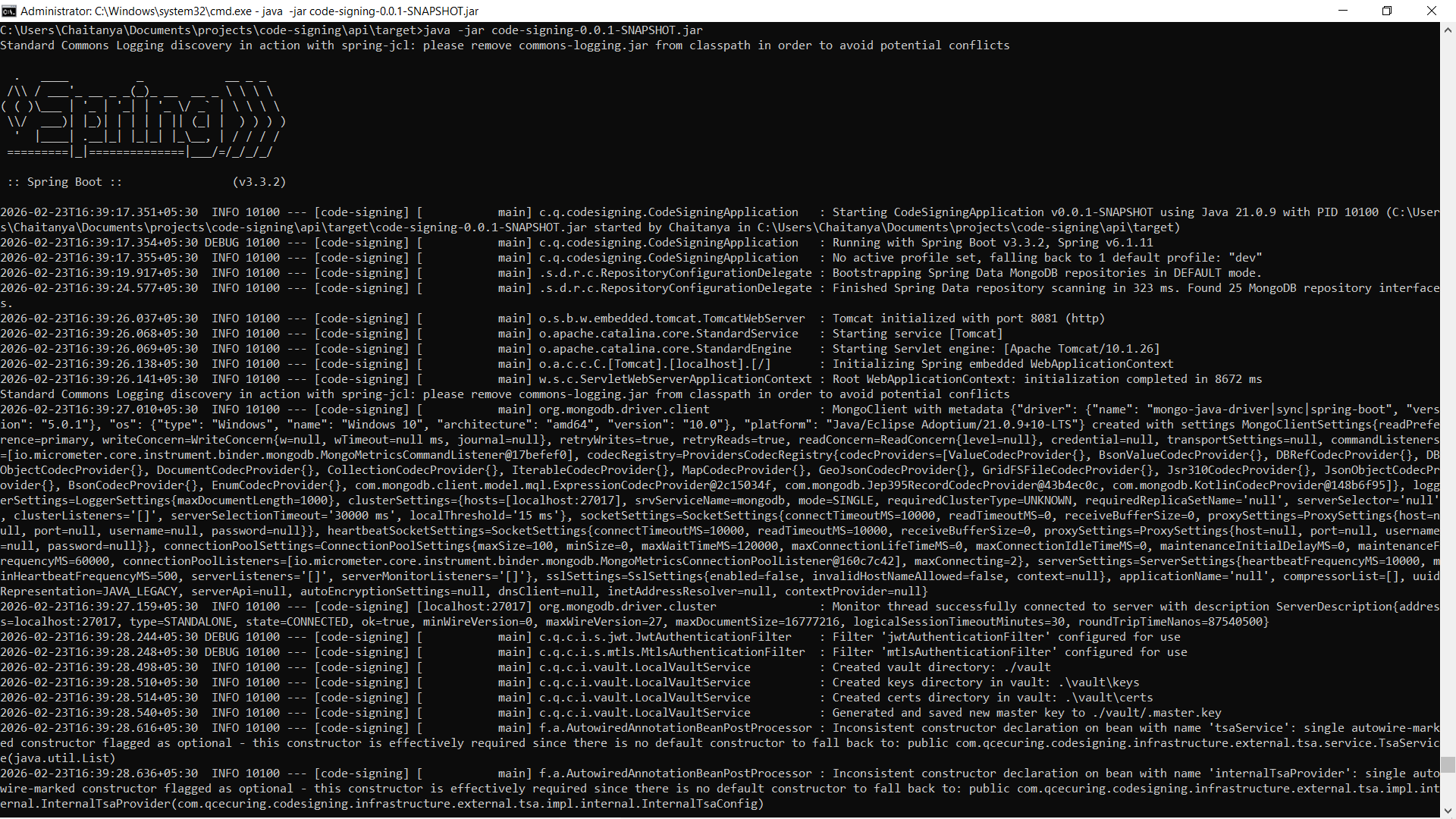

Code Signing launching bash

The application will start on:

http://localhost:8080

Profiles

The platform supports environment-based profiles.

Development Mode (default)

java -jar code-signing.jar

Uses:

Local MongoDB
Software keys (if configured)

Production Mode

java -jar code-signing.jar --spring.profiles.active=prod

Or using environment variable:

export SPRING_PROFILES_ACTIVE=prod
java -jar code-signing.jar

Production mode enables:

Strict security policies
HSM enforcement
mTLS agent validation
Hardened configurations

Configuration via Environment Variables

Example:

.env settings

# ===============================
# Code Signing Platform - Environment Variables Template
# ===============================
# Copy this file to .env and fill in the values
# For production deployment, set these as system environment variables

# ===============================
# Spring Profile
# ===============================
SPRING_PROFILES_ACTIVE=prod

# ===============================
# Server Configuration
# ===============================
SERVER_PORT=8080

# ===============================
# MongoDB Configuration (REQUIRED in production)
# ===============================
MONGODB_URI=mongodb://localhost:27017/your-code-signing-db

# ===============================
# Vault Configuration (REQUIRED in production)
# ===============================
VAULT_LOCAL_PATH=/var/lib/qcecuring/code-signing/vault
VAULT_MASTER_KEY_PATH=/var/lib/qcecuring/code-signing/vault/master.key

# ===============================
# JWT Configuration (REQUIRED in production)
# ===============================
# Generate a secure random key (min 256 bits):
# openssl rand -base64 32
JWT_SECRET=THIS_IS_LONG_STRING_HAS_TO_BE_CHANGED_12345
JWT_EXPIRATION=1800000

# ===============================
# Email Configuration
# ===============================
EMAIL_ENABLED=true
EMAIL_PROVIDER=gmail
EMAIL_FROM=noreply@qcecuring.com

# Gmail Configuration
EMAIL_HOST=smtp.gmail.com
EMAIL_PORT=587
EMAIL_USERNAME=your-email@gmail.com
EMAIL_PASSWORD=your-app-password
EMAIL_GMAIL_USERNAME=your-email@gmail.com
EMAIL_GMAIL_PASSWORD=your-app-password
EMAIL_GMAIL_FROM=noreply@qcecuring.com

# ===============================
# mTLS Configuration
# ===============================
MTLS_ENABLED=true
MTLS_DEV_AGENT_ID=dev-agent

# SSL/TLS Configuration (if using HTTPS)
SERVER_SSL_ENABLED=false
# SERVER_SSL_KEYSTORE=/path/to/keystore.p12
# SERVER_SSL_KEYSTORE_PASSWORD=changeit
# SERVER_SSL_KEY_ALIAS=server
# SERVER_SSL_CLIENT_AUTH=want
# SERVER_SSL_TRUSTSTORE=/path/to/truststore.p12
# SERVER_SSL_TRUSTSTORE_PASSWORD=changeit

# ===============================
# HSM Configuration
# ===============================
HSM_DEFAULT_PROVIDER=pkcs11

# PKCS#11 Configuration (SoftHSM or Hardware HSM)
HSM_PKCS11_ENABLED=false
PKCS11_LIBRARY=/usr/local/lib/softhsm/libsofthsm2.so
PKCS11_PIN=1234
PKCS11_SLOT=0
PKCS11_TOKEN_LABEL=dev-token
PKCS11_PROVIDER_NAME=Custom
PKCS11_PROVIDER_ID=pkcs11-default

# ===============================
# Reporting & Scheduling
# ===============================
REPORTING_ENABLED=true
REPORTING_POLLING_INTERVAL=60000
SCHEDULING_ENABLED=true

# ===============================
# Swagger/OpenAPI Configuration
# ===============================
SWAGGER_ENABLED=false
SWAGGER_LOG_ACCESS=true

And launching application

java -jar code-signing.jar --spring.profiles.active=prod

Health Check

Verify application health:

curl http://localhost:8080/actuator/health

Expected:

{
  "status": "UP"
}

Accessing the UI

Once started, open:

http://localhost:8080

The UI is served from the same application.

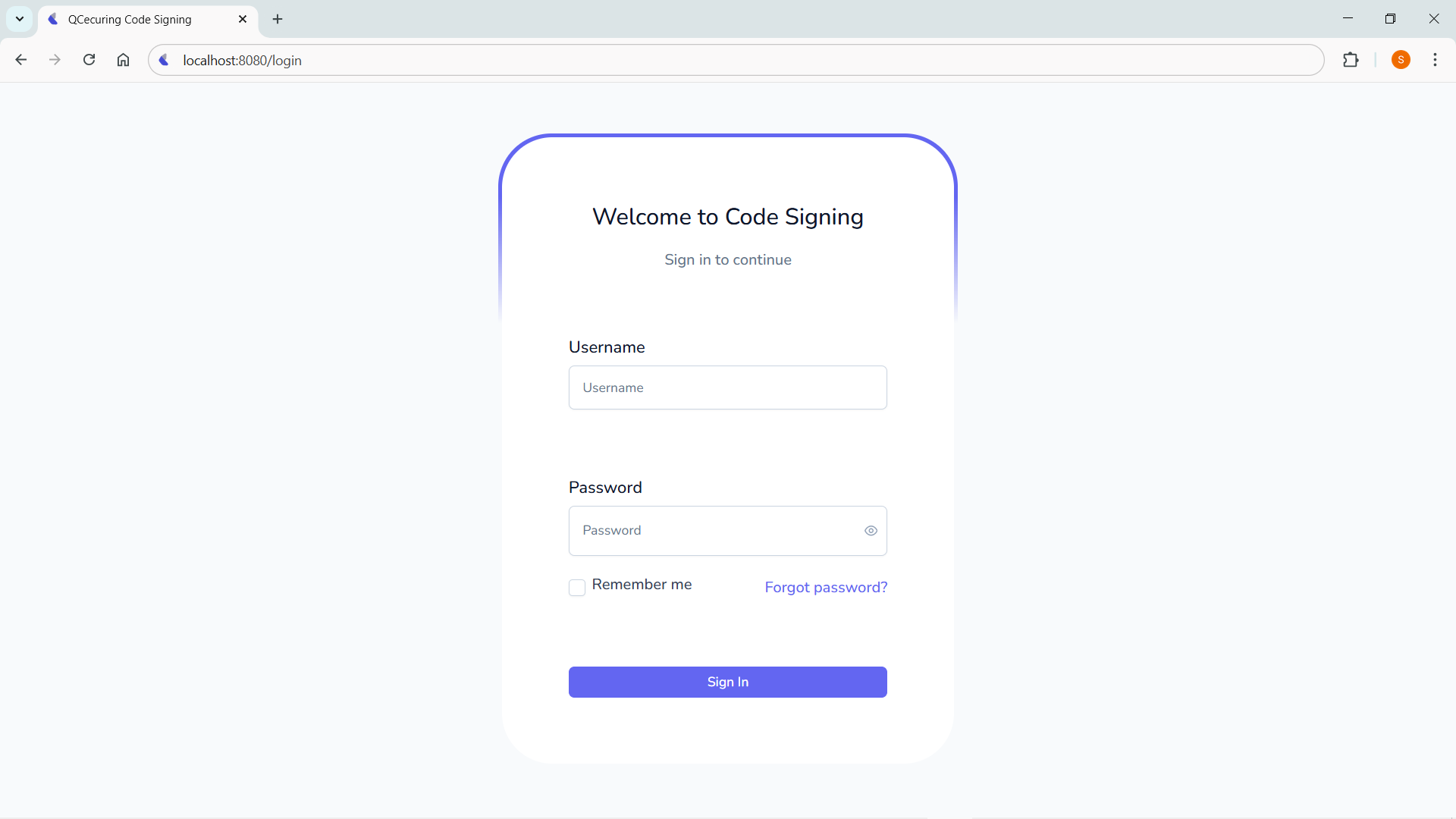

Code Signing open ui

Production Deployment Pattern

Recommended:

Run behind reverse proxy
Enable HTTPS
Enable HSM-backed keys
Enable mTLS for agents
Configure firewall rules
