Platform Installation

The QCecuring SSL-CLM Platform v2 is delivered as a unified Spring Boot application containing:

REST API
Web UI (Angular, served from the same app)
Certificate Lifecycle Engine
Discovery Engine
Policy Engine
ACME Server
Audit Layer
Scheduler
Notification Service

It runs as a single executable JAR.

Prerequisites

Required

Component	Version	Purpose
Java	21+	Application runtime
MongoDB	7.0+	Primary data store

Optional (Production)

Component	Purpose
TLS certificates	HTTPS for the platform
Reverse proxy (NGINX / LB)	SSL termination, load balancing
SMTP server	Email notifications (expiration alerts)
CA credentials	Certificate Authority integrations

Step 1 — Verify Java

java -version

Expected: Java 21 or higher

If not installed:

Ubuntu/Debian: apt install openjdk-21-jre
RHEL/CentOS: dnf install java-21-openjdk
Windows: Download from Adoptium

Step 2 — Start MongoDB

Docker (quickest)

docker run -d \
  --name ssl-clm-mongo \
  -p 27017:27017 \
  -v ssl-clm-data:/data/db \
  mongo:7

Native install

Follow MongoDB installation guide for your OS.

For production, configure a replica set for high availability.

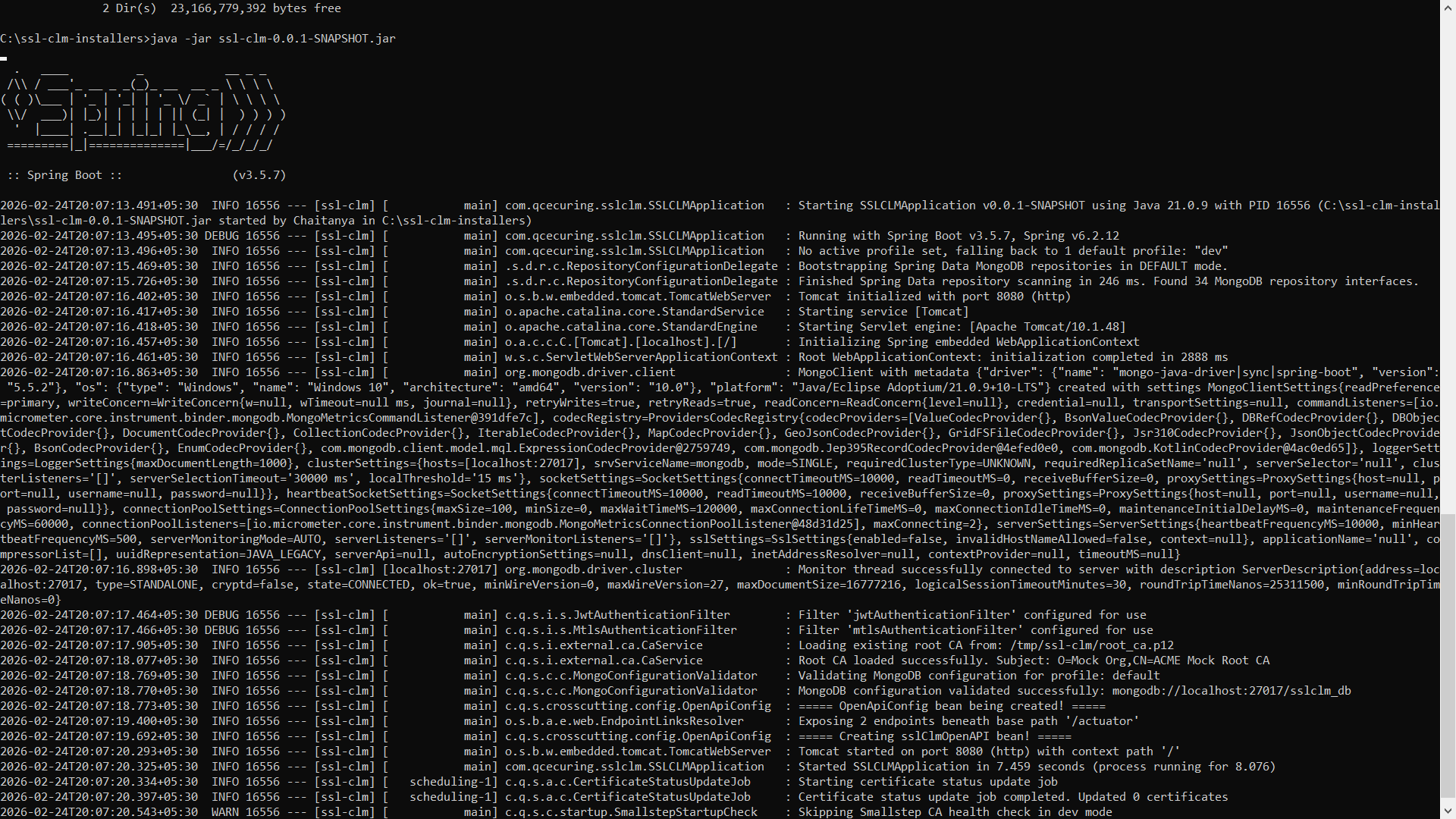

Step 3 — Run the Platform

java -jar ssl-clm-<version>.jar

The application starts on:

http://localhost:8080

Console output shows:

:: Spring Boot ::  (v3.x.x)
SSL-CLM Platform v2.0.x started on port 8080

Configuration

Environment Profiles

Profile	Command	Use Case
dev (default)	`java -jar ssl-clm.jar`	Local development, relaxed security
prod	`java -jar ssl-clm.jar --spring.profiles.active=prod`	Production with strict security

Environment Variables

Create a .env file or set environment variables:

# ─── Profile ───────────────────────────────────────
SPRING_PROFILES_ACTIVE=prod

# ─── Server ────────────────────────────────────────
SERVER_PORT=8080

# ─── MongoDB (REQUIRED) ───────────────────────────
MONGODB_URI=mongodb://localhost:27017/ssl-clm-db

# ─── Security (REQUIRED in production) ────────────
JWT_SECRET=your-long-random-secret-at-least-64-chars
JWT_EXPIRATION=1800000

# ─── Email (Optional) ─────────────────────────────
EMAIL_ENABLED=true
EMAIL_FROM=noreply@yourcompany.com
EMAIL_HOST=smtp.yourcompany.com
EMAIL_PORT=587
EMAIL_USERNAME=smtp-user
EMAIL_PASSWORD=smtp-password

# ─── HTTPS (Optional) ─────────────────────────────
SERVER_SSL_ENABLED=false
SERVER_SSL_KEY_STORE=/path/to/keystore.p12
SERVER_SSL_KEY_STORE_PASSWORD=changeit
SERVER_SSL_KEY_STORE_TYPE=PKCS12

# ─── Scheduler ────────────────────────────────────
SCHEDULING_ENABLED=true
REPORTING_ENABLED=true

# ─── Agent mTLS CA ────────────────────────────────
AGENT_CA_CERT_PATH=/path/to/agent-ca.pem
AGENT_CA_KEY_PATH=/path/to/agent-ca-key.pem

Key Configuration Notes

Variable	Purpose	Default
`MONGODB_URI`	MongoDB connection string	`mongodb://localhost:27017/ssl-clm-db`
`JWT_SECRET`	Secret for signing JWT tokens — change in production	Random (dev only)
`JWT_EXPIRATION`	JWT token lifetime in milliseconds	`1800000` (30 min)
`SERVER_PORT`	HTTP port	`8080`
`SCHEDULING_ENABLED`	Enable background scheduler (renewals, CA refresh)	`true`

Step 4 — Verify Health

curl http://localhost:8080/actuator/health

Expected:

{
  "status": "UP"
}

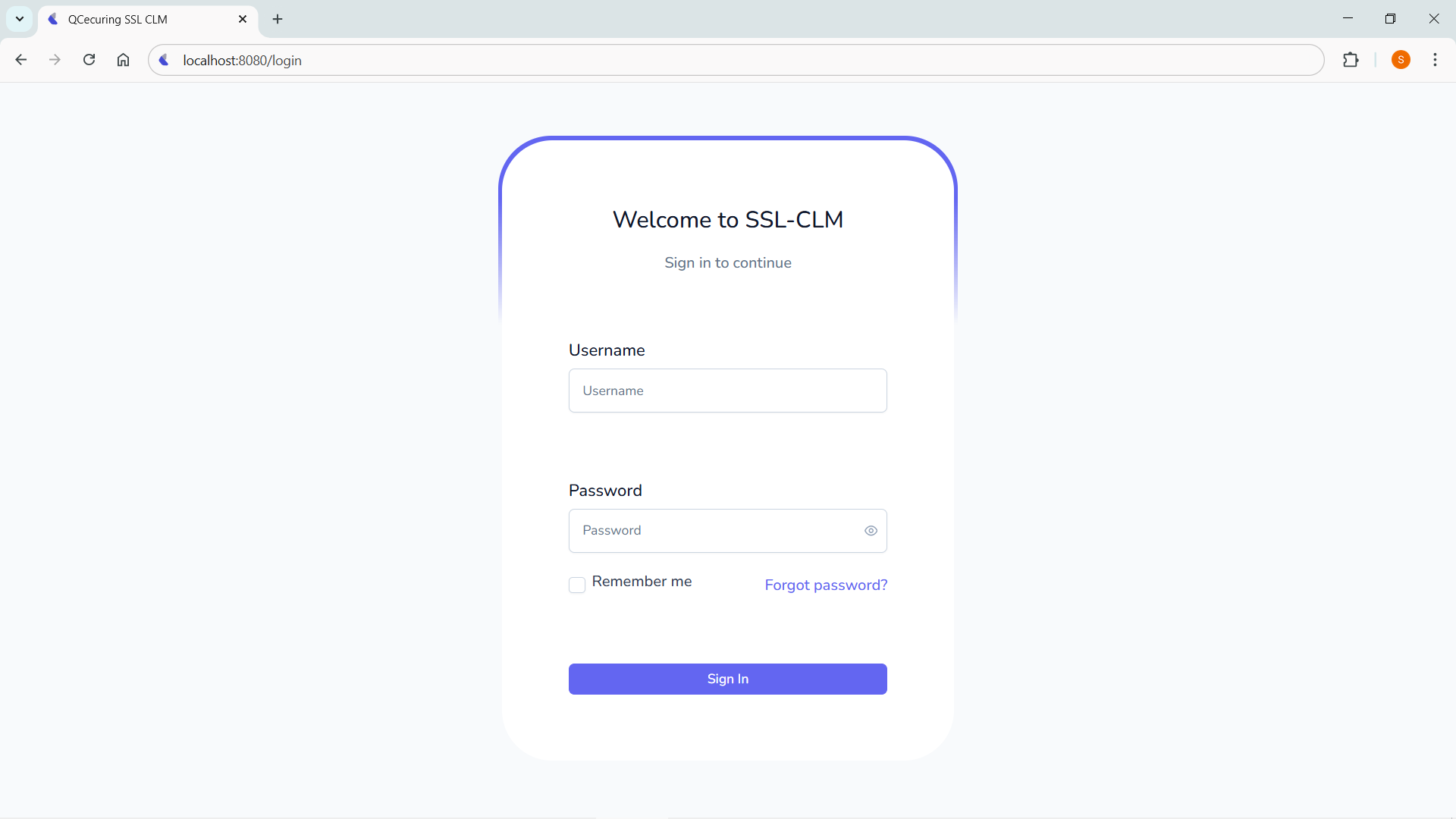

Step 5 — Access the UI

Open in your browser:

http://localhost:8080

The UI is served from the same application. Log in with the default admin credentials (shown in console on first run) or configure SSO.

Production Deployment

Recommended Setup

Internet / Internal Network
│
▼
Reverse Proxy (NGINX / ALB)
│ (HTTPS termination)
▼
SSL-CLM Platform (port 8080)
│
▼
MongoDB (replica set)

Running as a Service

Linux (systemd)

Create /etc/systemd/system/ssl-clm.service:

[Unit]
Description=SSL-CLM Platform
After=network.target mongod.service

[Service]
Type=simple
User=ssl-clm
WorkingDirectory=/opt/ssl-clm
ExecStart=/usr/bin/java -jar /opt/ssl-clm/ssl-clm.jar --spring.profiles.active=prod
Restart=always
RestartSec=10
EnvironmentFile=/opt/ssl-clm/.env

[Install]
WantedBy=multi-user.target

sudo systemctl daemon-reload
sudo systemctl enable ssl-clm
sudo systemctl start ssl-clm

Windows (Service)

Use NSSM or Windows Service wrapper:

nssm install SSLCLMPlatform "C:\Program Files\Java\jdk-21\bin\java.exe" "-jar C:\ssl-clm\ssl-clm.jar --spring.profiles.active=prod"
nssm set SSLCLMPlatform AppEnvironmentExtra "MONGODB_URI=mongodb://localhost:27017/ssl-clm-db" "JWT_SECRET=your-secret"
nssm start SSLCLMPlatform

Docker

docker run -d \
  --name ssl-clm \
  -p 8080:8080 \
  -e MONGODB_URI=mongodb://mongo:27017/ssl-clm-db \
  -e JWT_SECRET=your-secret \
  -e SPRING_PROFILES_ACTIVE=prod \
  qcecuring/ssl-clm:latest

Production Checklist

Item	Status
`JWT_SECRET` changed from default	☐
MongoDB secured with authentication	☐
HTTPS enabled (direct or via reverse proxy)	☐
Firewall restricts MongoDB port (27017) to platform only	☐
Agent CA certificate configured for mTLS	☐
SMTP configured for email alerts	☐
Backup strategy for MongoDB	☐
Log rotation configured	☐
Health check monitoring in place	☐

Upgrading

Stop the platform: systemctl stop ssl-clm
Back up MongoDB: mongodump --db ssl-clm-db
Replace the JAR file with the new version
Start the platform: systemctl start ssl-clm
Verify health: curl http://localhost:8080/actuator/health

SSL-CLM handles database migrations automatically on startup.

Next Steps

After the platform is running:
