ACME Server

ACME Server

SSL-CLM includes a built-in ACME server that exposes RFC 8555-compliant endpoints. This allows any standard ACME client (certbot, acme.sh, win-acme, Caddy, Traefik, etc.) to request certificates from your internal Certificate Authorities using the ACME protocol.

Navigation: Sidebar → Infrastructure → ACME Server

---

Why an ACME Server?

Organizations often need:

• Developers to request certificates without accessing the SSL-CLM UI
• CI/CD pipelines to auto-provision certificates
• Web servers with built-in ACME support (Caddy, Traefik) to use internal CAs
• A standard protocol interface to private PKI

The built-in ACME server bridges this gap — it exposes your internal CAs via the industry-standard ACME protocol.

---

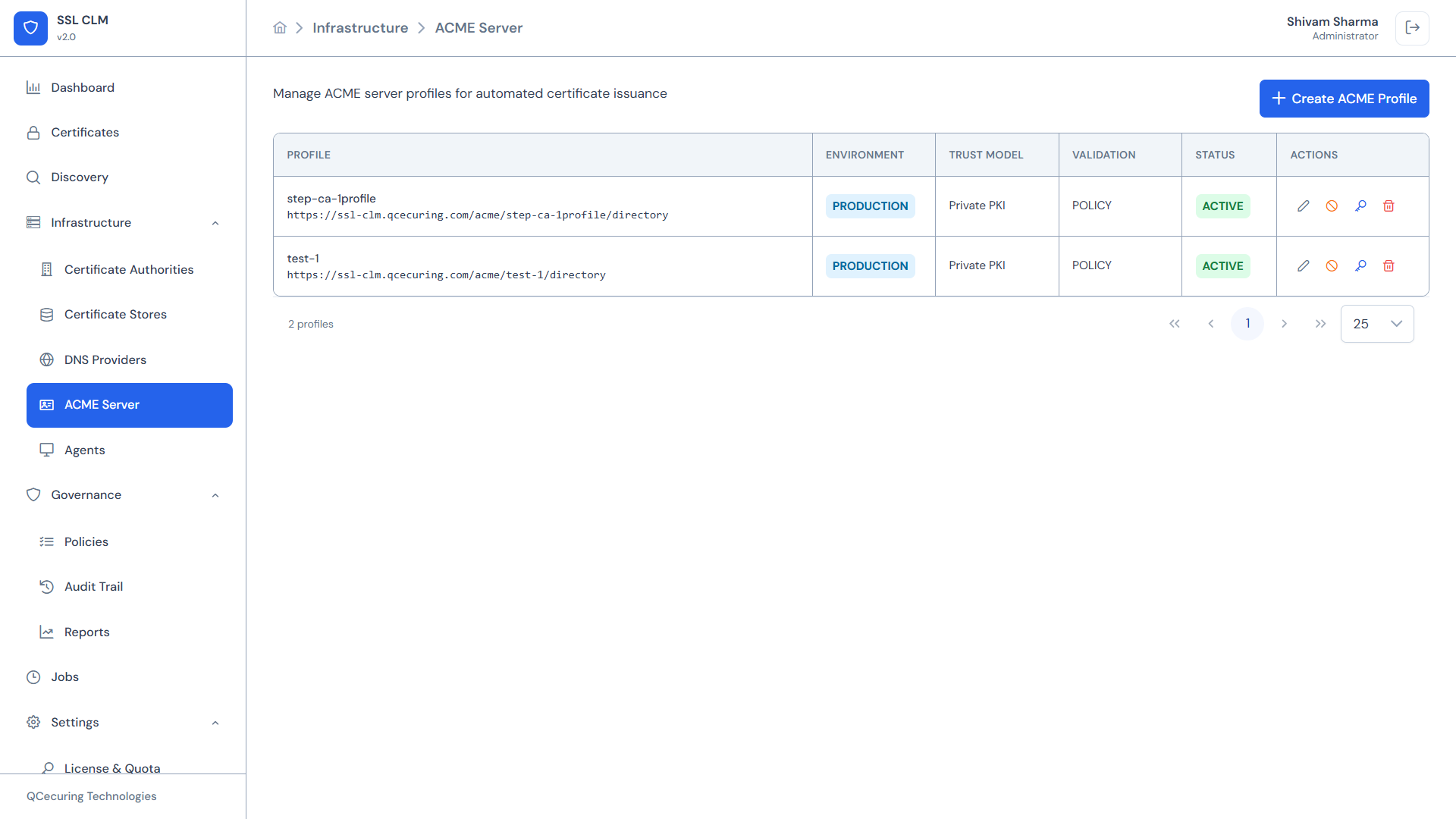

ACME Profile Table

The main view lists all configured ACME profiles:

Column	Description
Name	Profile display name
Directory URL	The ACME directory endpoint URL
Environment	PRODUCTION or SANDBOX
Trust Model	PRIVATE_PKI or PUBLIC_CA
Validation	Validation mode: POLICY or CA_ENFORCED (derived from Trust Model)
Status	ACTIVE or DISABLED
Actions	Edit, Disable, View URL, Delete

---

ACME Profile Configuration

Fields

Field	Description	Options
Name	Display name for the profile	Free text
Profile ID	URL-safe identifier (used in directory URL)	e.g., internal-pki
Environment	Deployment context	PRODUCTION, SANDBOX
Trust Model	Type of PKI trust	PRIVATE_PKI, PUBLIC_CA
CA Integration	Which configured CA backs this profile	Select from configured CAs
Validation Mode	Derived automatically from Trust Model	POLICY (PRIVATE_PKI), CA_ENFORCED (PUBLIC_CA)

Note: Validation Mode is set automatically from the Trust Model — you do not choose it directly. PRIVATE_PKI maps to POLICY (no challenge), PUBLIC_CA maps to CA_ENFORCED (the backing CA enforces validation).

Policy Section

Each ACME profile defines what certificates it will issue:

Field	Description	Example
Allowed Key Types	Which key algorithms are accepted	RSA, ECDSA
Allowed Key Sizes	Which key sizes are accepted	2048, 3072, 4096
Allowed SAN Types	Which SAN types are accepted	DNS, IP
Max Certificate Validity (days)	Maximum validity for issued certs	365
Auto-Renewal Allowed	Whether ACME renewal is permitted	Yes / No

External Account Binding (EAB)

EAB is always required for every profile. It ties an ACME account to a profile you authorized, so anonymous clients cannot register.

Field	Description
EAB KID	Key identifier for the external account
EAB HMAC Key	Shared secret for account binding

Credentials are generated when the profile is created (and shown once). ACME clients must supply both the --eab-kid and --eab-hmac-key during account registration or the very first certonly run.

---

Creating an ACME Profile

1. Click + Create ACME Profile
2. Fill in the profile configuration:
   • Name and Profile ID
   • Select environment (Production / Sandbox)
   • Select trust model (PRIVATE_PKI or PUBLIC_CA) — this also sets the validation mode automatically
   • Choose the backing Certificate Authority
   • Set policy constraints (key types, sizes, validity)
3. Click Save
4. Save the EAB credentials shown in the dialog — the HMAC secret is displayed only once. A ready-to-run certbot example is shown alongside them.

The system generates a Directory URL like:

https://ssl-clm.example.com/acme/internal-pki/directory

---

Environments

Environment	Purpose	Recommended Use
PRODUCTION	Live certificates for production workloads	Real infrastructure
SANDBOX	Testing ACME client configuration without affecting production	CI/CD testing, client onboarding, dry runs

Use a SANDBOX profile to test ACME client configurations before pointing clients at a PRODUCTION profile.

---

Trust Models

Model	Description	Validation Mode	Use Case
PRIVATE_PKI	Certificates issued from an internal CA (e.g., Smallstep/step-ca), trusted only within your organization	POLICY — no challenge; issuance controlled by EAB + policy	Internal services, microservices, dev/test
PUBLIC_CA	Certificates issued through a public/managed CA connector (e.g., DigiCert, or Let’s Encrypt via the ACME gateway)	CA_ENFORCED — the backing CA performs its own domain validation	Public-facing services

Important: For a PUBLIC_CA profile backed by Let’s Encrypt, the backing CA validates the domain over the public internet (DNS-01 via a configured DNS provider). The domain must be real and publicly resolvable — local/internal names like myapp.internal.corp cannot be validated by a public CA.

---

Validation Modes

Validation Mode is derived from the Trust Model — you do not set it directly.

Mode	Set When Trust Model Is	How It Works
POLICY	PRIVATE_PKI	No ACME challenge. Authorizations are auto-approved and the certificate is issued immediately. Access is gated by EAB + issuance policy. Best for internal PKI where requestors are already authenticated.
CA_ENFORCED	PUBLIC_CA	The backing CA performs domain validation (e.g., Let’s Encrypt DNS-01 via a configured DNS provider). Requires the domain to be publicly resolvable.

The ACME challenge type (DNS-01 vs HTTP-01) is a separate concept from Validation Mode. In POLICY mode no challenge is used at all. Wildcard certificates from a public CA always require DNS-01.

---

Using with ACME Clients

Certbot

A single certonly command registers the account (using the EAB credentials) and requests the certificate. Use the exact Directory URL shown on your ACME profile — the profile ID in the path selects the profile.

certbot certonly \
  --server "https://ssl-clm.example.com/acme/internal-pki/directory" \
  --standalone \
  -d myapp.internal.corp \
  --agree-tos \
  -m admin@example.com \
  --eab-kid "YOUR_KID" \
  --eab-hmac-key "YOUR_HMAC_KEY"

Notes:

• --eab-kid and --eab-hmac-key come from the ACME profile (shown once at creation). They are required.
• If your SSL-CLM endpoint uses a self-signed or internal TLS certificate, add --no-verify-ssl (or point certbot at your internal CA bundle). Do not use --no-verify-ssl against a production, publicly-trusted endpoint.
• --standalone makes certbot serve the HTTP-01 challenge itself on port 80. It is only relevant for CA_ENFORCED (public CA) profiles that use HTTP-01. For POLICY (private PKI) profiles no challenge is performed, so the flag is harmless but unused.

Where the certificate and key land: certbot generates the private key locally and writes the results to /etc/letsencrypt/live/<domain>/ (privkey.pem, cert.pem, chain.pem, fullchain.pem). The private key never leaves the client — SSL-CLM only receives the CSR and returns the signed certificate.

acme.sh

# Register once with EAB, then issue
acme.sh --register-account \
  --server "https://ssl-clm.example.com/acme/internal-pki/directory" \
  --eab-kid "YOUR_KID" \
  --eab-hmac-key "YOUR_HMAC_KEY"

acme.sh --issue \
  --server "https://ssl-clm.example.com/acme/internal-pki/directory" \
  -d myapp.internal.corp \
  --standalone

For an internal/self-signed SSL-CLM endpoint, set export HTTPS_INSECURE=1 (acme.sh’s equivalent of skipping TLS verification) or configure your internal CA bundle.

win-acme (Windows)

wacs.exe --baseuri https://ssl-clm.example.com/acme/internal-pki/directory

Caddy (automatic)

myapp.internal.corp {
    tls {
        ca https://ssl-clm.example.com/acme/internal-pki/directory
        ca_root /path/to/internal-ca-root.pem
    }
    reverse_proxy localhost:8080
}

Traefik

certificatesResolvers:
  internal:
    acme:
      caServer: https://ssl-clm.example.com/acme/internal-pki/directory
      email: admin@example.com
      storage: /etc/traefik/acme.json
      eab:
        kid: YOUR_KID
        hmacEncoded: YOUR_HMAC_KEY

---

ACME Protocol Flow

1. Client → ACME Server: POST /acme/{profile}/new-account (register)
2. Client → ACME Server: POST /acme/{profile}/new-order (request cert)
3. ACME Server → Client: Challenge (DNS-01, HTTP-01, or POLICY auto-approve)
4. Client completes challenge (if required)
5. Client → ACME Server: POST /acme/{profile}/finalize (submit CSR)
6. ACME Server → Backing CA: Issue certificate
7. ACME Server → Client: Certificate + chain

For POLICY validation mode, steps 3–4 are skipped — the certificate is issued immediately based on the requestor’s ACME account authorization.

---

EAB Credential Management

External Account Binding provides authenticated ACME access:

• Generate EAB credentials from the ACME profile detail view
• Credentials consist of a kid (key ID) and hmacKey (shared secret)
• Distribute credentials securely to authorized ACME clients
• Credentials can be rotated periodically for security
• Revoke compromised credentials to block unauthorized issuance

---

Status Management

Action	Effect
Disable	Profile stops accepting new ACME requests. Existing certs remain valid.
Enable	Profile resumes accepting requests.
Delete	Profile is permanently removed. Directory URL stops responding.

---

Monitoring

ACME operations are tracked in:

• Audit Trail — Account registrations, orders, and issuances are logged (category ACME_PROFILE)
• Certificates — Every ACME-issued certificate is added to the certificate inventory, linked to a certificate identity, showing its issuing CA and the ACME profile in its metadata

Why ACME-issued certs are MONITORED

Certificates obtained by an ACME client (certbot, acme.sh, etc.) appear in the inventory with the MONITORED tier, not MANAGED. This is intentional and matches industry practice:

• The ACME client holds the private key and drives its own renewal (it re-requests the certificate from SSL-CLM on its own schedule).
• SSL-CLM therefore observes and tracks these certificates (inventory, expiry alerts, ownership, audit) but does not drive their renewal or deployment — which is what MANAGED implies.

Certificates that SSL-CLM issues and controls end-to-end (where it holds the key and drives renewal + deployment) are the ones treated as MANAGED.

---
