Audit Trail

Audit Trail

The Audit Trail provides a tamper-resistant, immutable record of every action performed in the SSL-CLM platform — by users, agents, and automated system processes.

Navigation: Sidebar → Governance → Audit Trail

---

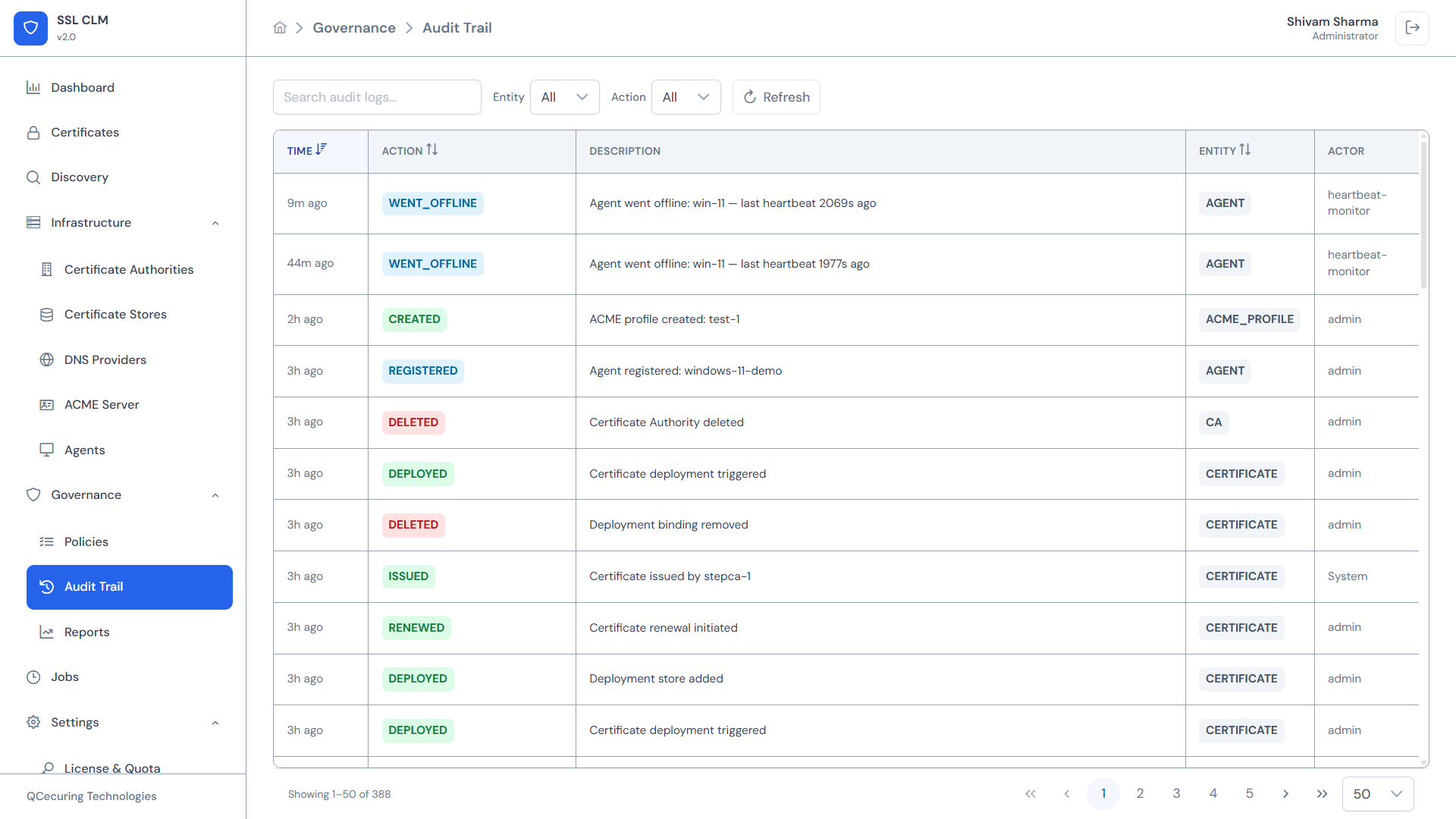

Audit Log Table

The main view displays audit entries in reverse chronological order:

Column	Description
Time	Relative timestamp (e.g., “3h ago”, “2d ago”) with exact time on hover
Action	Event type as a color-coded badge
Description	Human-readable detail of what happened
Entity	Resource type affected (e.g., CERTIFICATE, CA, AGENT)
Actor	Who performed the action — username or system identifier

---

Action Types

Action	Color	Meaning
CREATED	Blue	Resource was created
ISSUED	Green	Certificate was issued
RENEWED	Green	Certificate was renewed
DEPLOYED	Teal	Certificate was deployed to a store
REVOKED	Orange	Certificate was revoked
DELETED	Red	Resource was deleted
REGISTERED	Blue	Agent was registered
WENT_OFFLINE	Red	Agent stopped reporting
REJECTED	Red	Approval request was rejected
APPROVED	Green	Approval request was approved
CONFIGURED	Blue	Settings were changed
DISABLED	Gray	Resource was disabled
FAILED	Red	Operation failed

---

Entity Types

Entity	What It Covers
CERTIFICATE	Certificate lifecycle events (creation, issuance, renewal, revocation, deployment)
CA	Certificate Authority CRUD, health changes, sync operations
AGENT	Agent registration, status changes, job execution
STORE	Certificate store CRUD, deployment operations
ACME_PROFILE	ACME server profile creation, modification, deletion
POLICY	Policy CRUD, enable/disable events
USER	User CRUD, role assignments, login events
ROLE	Role CRUD, permission changes
TEAM	Team CRUD, member changes
DNS_PROVIDER	DNS provider CRUD, verification events
JOB	Job lifecycle events
SETTINGS	System setting changes

---

Actors

Each audit entry records who performed the action:

Actor Type	Examples	Meaning
User	admin@example.com, john.doe	Human user performed the action via UI or API
System	System	Platform automated process (scheduler, auto-renewal)
Agent	AGENT:agent-id	Agent executed a job
heartbeat-monitor	heartbeat-monitor	System process that detects agent status changes

---

Filtering

Search

Free-text search across all fields — description, entity, actor, action.

Entity Filter

Dropdown to filter by resource type:

• All Entities
• CERTIFICATE
• CA
• AGENT
• STORE
• ACME_PROFILE
• POLICY
• USER
• (etc.)

Action Filter

Dropdown to filter by event type:

• All Actions
• CREATED
• ISSUED
• RENEWED
• DEPLOYED
• REVOKED
• DELETED
• (etc.)

Refresh

Click the refresh button to load the latest entries.

---

Audit Entry Detail

Click any row to expand its full details:

Field	Description
Log ID	Unique identifier for this audit entry
Timestamp	Exact ISO-8601 timestamp
Action	Event type
Entity Type	Resource type
Entity ID	Specific resource identifier
Actor Type	USER, SYSTEM, or AGENT
Actor ID	User email, system process name, or agent ID
Description	Full human-readable description
Details	Structured JSON payload with operation-specific data

Details Payload Examples

Certificate Issued:

{
  "certificateId": "cert-abc123",
  "commonName": "api.example.com",
  "caId": "ca-smallstep-1",
  "serialNumber": "1A2B3C4D",
  "validFrom": "2026-08-20T00:00:00Z",
  "validTo": "2027-08-20T00:00:00Z"
}

Agent Went Offline:

{
  "agentId": "agent-xyz",
  "hostname": "web-server-01",
  "lastHeartbeat": "2026-08-20T10:30:00Z",
  "offlineSince": "2026-08-20T10:35:00Z"
}

Policy Violated:

{
  "policyId": "policy-strict-1",
  "policyName": "Production Web Certificates",
  "violation": "Key size 1024 below minimum 2048",
  "requestedBy": "developer@example.com"
}

---

Immutability

Audit logs are:

• Append-only — Entries cannot be modified or deleted through the UI or API
• Tamper-resistant — Each entry is stored with integrity metadata
• Complete — Every state change across the platform is logged
• Retained indefinitely — No automatic purging (configurable retention in enterprise plans)

---

Compliance Use Cases

Requirement	How Audit Trail Helps
Who issued this certificate?	Filter by Entity=CERTIFICATE, Action=ISSUED
When was this CA last synced?	Filter by Entity=CA, look for CA_REFRESH events
Who approved this deployment?	Filter by Action=APPROVED, Entity=CERTIFICATE
Why did this agent go offline?	Filter by Entity=AGENT, Action=WENT_OFFLINE
What settings changed recently?	Filter by Entity=SETTINGS, Action=CONFIGURED
Track all user login activity	Filter by Entity=USER, Action=AUTHENTICATED

---

Export

Audit logs can be exported for external analysis or compliance reporting:

• Navigate to Governance → Reports
• Generate an Audit Report for a specific date range
• Export as CSV, PDF, or Excel

---

Related Pages

• Jobs — Background operation tracking
• Reports — Generate audit reports
• Settings → Roles — audit:read permission required
